DFS100 Defibrillator / AED Handheld Tester

Quickly verify whether the installed AED is functioning properly, suitable for regular inspection and maintenance. It is applicable to all AED brands on the market. DFS100 can generate three types of ECG signals: VT, VF, and NSR, and can receive AED shocks. Users can customize the AED shock energy to ensure that the AED operates within the normal range.

Request a quote Inquiry list

Origins

With the continuous advancement of technology, the maintenance and management of medical equipment is ushering in a new era. DFS100 is not only a tester for AED, but also an innovative product designed by WhaleTeq to improve the efficiency and reliability of after-sales service.

The advantage of DFS100 lies in its compact and lightweight design and intuitive operation interface. Users can easily determine whether the AED is operating normally through the LED light indicators on the DFS100 body.

*Note: If you want to perform complete AED shock energy test and battery voltage measurement, please click here to refer to the DFS200 product introduction page.

Functions

Equipped with 3 ECG Modes

Includes VT (ventricular tachycardia), VF (ventricular fibrillation), NSR (normal sinus rhythm)

Customizable Shock Energy Range

Adjustable range from 40 to 360 Joules

Highlights

Portable and Lightweight Design for Simple Verification

Operate independently without the need for internet connection.
Lightweight device weighing only 330 grams, allowing for one-handed operation.
Use indicator lights to show whether the defibrillation energy meets custom standards.
No need to distinguish polarity, can be connected in either way

Energy Measurement Specifications

Items	Specifications
Maximum Energy	Range: Up to 600J
Voltage	Range: Up to 5000Vp Accuracy: ± (1% of reading +2V)
Load Resistance	Resistance: 50Ω
Maximum Average Power	12 W, equivalent to 1 defib pulse of 360 J every 30 seconds
Self-defined pass criteria range	40 ~ 360J

ECG Signal Specifications

Parameters	Specifications
Waves	Ventricular Fibrillation, Ventricular Tachycardia (≥ 234bpm)
Normal Sinus Rhythm (NSR)	Set at 80BPM, 3mV

General Specifications

Items	Specifications
Temperature	Operating: 0°C ~ 50°C (32°F ~ 122°F) Storage: -20°C ~ +60°C (-4°F ~ +140°F)
Humidity	10% ~ 90% non-condensing
Communications	USB Type-C connector only
Power	9V alkaline battery * 1 (no charger)
Mechanical	Housing: ABS Plastic Size (L x W x H): 17.0 x 8.55 x 4.0cm Weight: 330g

Compliance Specifications

Parameters	Specifications
Safety Standards	CE: IEC / EN61010-1:2010 + A1:2016; Pollution degree 2 61010-2-030:2017
Electromagnetic Compatibility Standards (EMC)	CE: EN61326-1; EN301489‐1/EN301489‐17 FCC: EMC P15B

Specifications are subject to change without prior notice.

DFS100 Test System

Part No.	Image	Description	Quantity
100-DF00001		Model No.: DFS100 Model Name: Defibrillator / AED Handheld Tester	1

Optional Accessories

Part No.	Description	Quantity

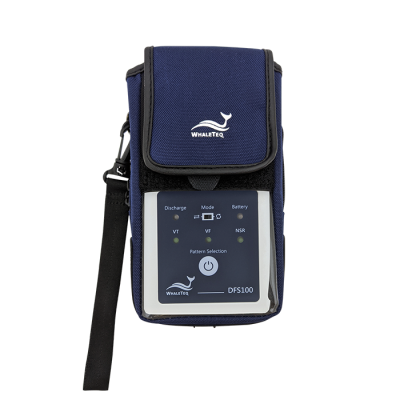

G34-0600101	DFS carrying bag	1
D06-9000321	9V alkaline battery	1
K22-0500101 *	Open-ended AED cable (Banana Male), 0.5 meter (Black)	1
K22-0500102 *	Open-ended AED cable (Banana Male), 0.5 meter (Red)	1
N61-0210033	Compact splicing connector	1
K27-1800304	USB transfer cable: Type-A to Type-C (Male to Male), 1.8 meter	1

*Note: Customization of AED interface cable adapter is available. Please contact WhaleTeq (service@whaleteq.com).

Optional Calibration Service and Warranty Extension

Part No.	Description
YY0007	Model No.: C3 Provides (3) years of calibration service coverage. WhaleTeq equipment can be calibrated to original performance on the basis of (1) year interval.
YY0008	Model No.: R3 Extends the limited warranty from (1) year to (3) years.
