EEG Breakout Box

The EEG Breakout Box is designed for the SEEG 100. Users can use the compound terminals to connect to the DUT with ease.

Easy to connect to EEG DUT

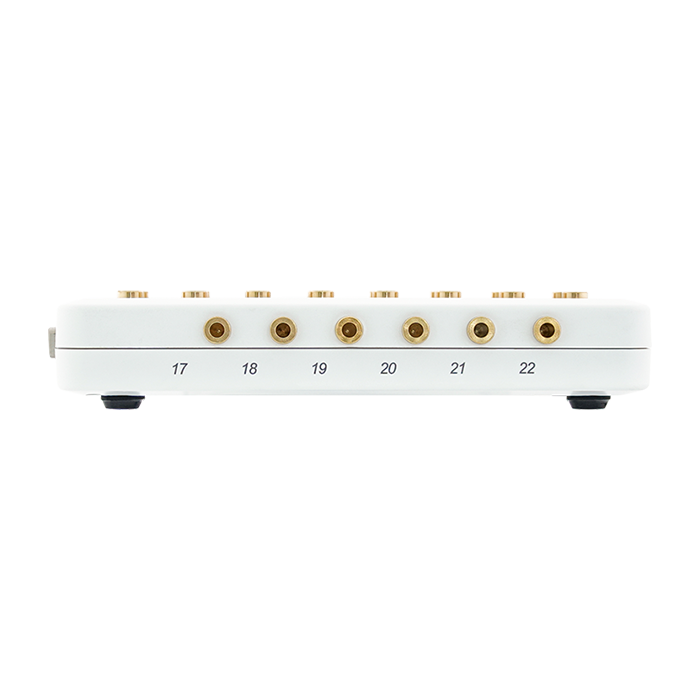

Including 22 terminals (Ch1 ~ Ch22) in EEG breakout box. Only 9 terminals (Ch1 ~ Ch9) could output waveforms, and the rest 13 terminals (Ch10 ~ Ch22) are connected to ground

Part No.	Description	Quantity
100-EE00001	General purpose breakout box for EEG particular standards. Suitable for SEEG 100	1
