Highlights
- Designed according to IEC 60601-2-2:2009 clause 201.15.101.6 for testing NE contact impedance
- Outputs 200mA into 0—50Ω load from 50kHz—5MHz
- Equipped with DDS (direct digital synthesis) technology for a stable frequency output
- Inbuilt current monitor port eliminating the need for expensive current probes
| Parameters | Specifications |
|---|---|
| Frequency Range | 50kHz – 5MHz |
| Maximum Voltage | 11Vrms (~31Vpp), ≥50Ω |
| Maximum Current | >200mArms, ≤50Ω |
| Waveform | Sine |
| Frequency Response | <±0.8dB, 50Ω |
| THD | <0.3% (-50.4dB), at 200mArms, 50Ω, 1MHz |
| Impedance | <3.2Ω + j0.4µH |
| Auxiliary Equipment for Contact Impedance Test | Oscilloscopes (Ch1 connects with voltage probe to measure voltage, Ch2 connects with HFPA150 current monitoring port to measure the current value) |
| Current Measurement Accuracy | +10% / -0% (Unilateral Tolerance) |
| Current Measurement Frequency Range | 50kHz – 5MHz |
| Current Measurement Connector Type | BNC |
| Power Source | Power Adapter Input: 100 – 240V, 50/60Hz Output: 12V DC / 2A |
| Environment | 10℃ – 40℃, 30% – 90% RH |
| Size / Weight | 18 x 18 x 4.8cm (L x W x H) / 0.7kg (net weight) |

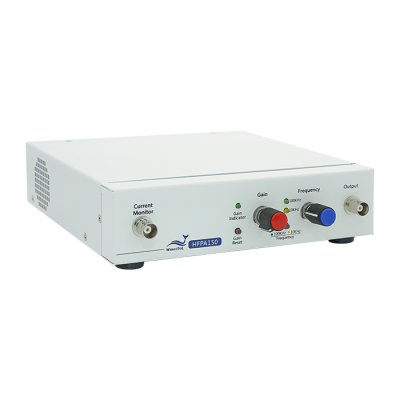

HFPA150 Test System
| Part No. | Description | Quantity |
|---|---|---|
| 100-HF00103 | Model No.: HFPA150 Model Name: NE Contact Impedance Tester | 1 |
Optional Accessory
| Part No. | Description | Quantity |
|---|---|---|
| 300-HFPA15D | 1Ω/50Ω power resistor load for HFPA150 calibration | 1 |
Optional Calibration Service and Warranty Extension
| Part No. | Description |
|---|---|
| YY0007 | Model No.: C3 Provides (3) years of calibration service coverage. WhaleTeq equipment can be calibrated to original performance on the basis of (1) year interval. |
| YY0008 | Model No.: R3 Extends the limited warranty from (1) year to (3) years. |
