SECG 5.0 AIO

The ECG simulator designed for ECG performance testing. Capable of adding noise, respiration and lead-off simulations. Flexible operation modes for standalone or PC software.
Suitable for R&D and compliance testing.
Compliant with IEC 60601-2-25, IEC 60601-2-27, IEC 60601-2-47, GB 9706.225, GB 9706.227, YY 9706.247, YY1079, YY1139, YY0782, YY0885, JJG 760, JJG 1042, ANSI/AAMI EC11, ANSI/AAMI EC13

Request a quote Inquiry list

Software

AP APK Firmware USB Driver for Win7/8 Release Note_AP Release Note_APK

Datasheet

SECG 5.0 AIO

User Manual

SECG 5.0 AIO

SDK

Download (Windows)

DFS200 Defibrillator / AED Handheld Tester
Overview
Specification
Video
Ordering information

Overview

SECG 5.0 AIO

Built-in test circuits as defined in ECG standards
Adjustable parameters and selectable options enable to verify DUT with flexibility
Provides NST noise simulation － Electrode Motion Artifact / Muscle Noise / Baseline Wander
Various signal simulations － Impedance Type Respiration, Wave Modulation Type (Baseline / Amplitude / Frequency) Respiration and lead-off simulation
Auto Sequence function assists in conducting semi-automated tests
Loads and plays recorded or programmed waveforms
Software Development Kit (SDK) allows to develop customized or automated test software with less efforts
Optional Standard Assistant software pack simplifies the medical standard with test sequences, options, parameters and pass criteria

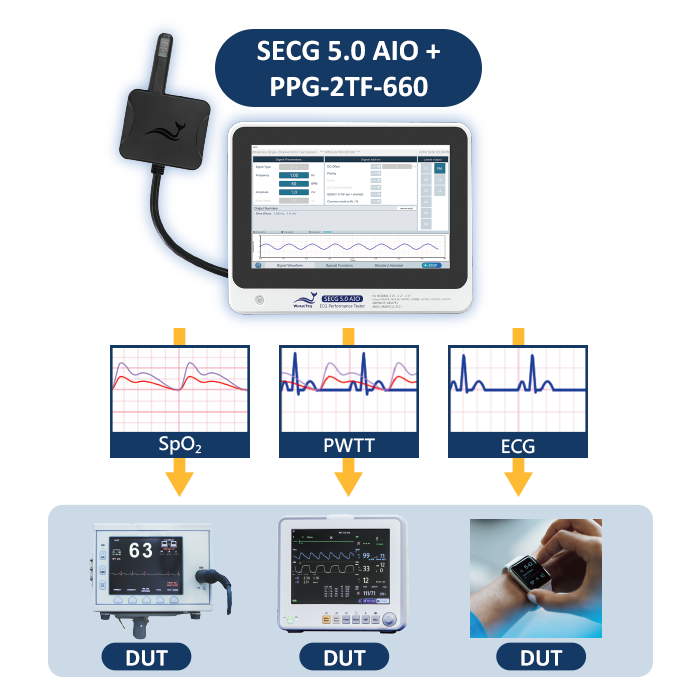

With Transmittance SpO₂ Module (PPG-2TF-660)

Simulates ECG and PPG signals to conduct SpO₂ and PWTT (Pulse Wave Transit Time) testing
Adjustable SpO₂ parameters, such as AC, DC, and PI values of R/IR, to confirm the accuracy of DUTs
Builds or loads the R curve of the SpO₂ function to quickly verify products' performance and assist in comparing against competitors
Built-in 14 types of ambient light signals and respiratory variation simulation － add-on signals for more authentic testing
Synchronizes ECG and PPG signals while enabling users to adjust the time difference to test the accuracy of non-invasive blood pressure measurement algorithms

With Reflectance SpO₂ Module (PPG-2R-880/PPG-2R-940)

Simulates ECG and PPG signals to conduct SpO₂ and PWTT (Pulse Wave Transit Time) testing
Adjustable SpO₂ parameters, such as AC, DC, and PI values of R/IR, to confirm the accuracy of DUTs
Builds or loads the R curve of the SpO₂ function to quickly verify products' performance and assist in comparing against competitors
Built-in respiratory variation simulation － add-on signals for more authentic testing
Synchronizes ECG and PPG signals while enabling users to adjust the time difference to test the accuracy of non-invasive blood pressure measurement algorithms

With Reflectance Green Light Heart Rate Module (PPG-1R-525)

Outputs green light analog signals to simulate PPG signals
Built-in respiratory variation simulation － add-on signals for more authentic testing
Synchronizes ECG and PPG signals while enabling users to adjust the time difference to test the accuracy of non-invasive blood pressure measurement algorithms
Equipped with RCA to BNC ports to connect to an oscilloscope － outputs amplified and stable signals for viewing the voltage of AC analog signals of green light, optical signals received by the PPG-1R-525, and the switch status of green LED of DUT

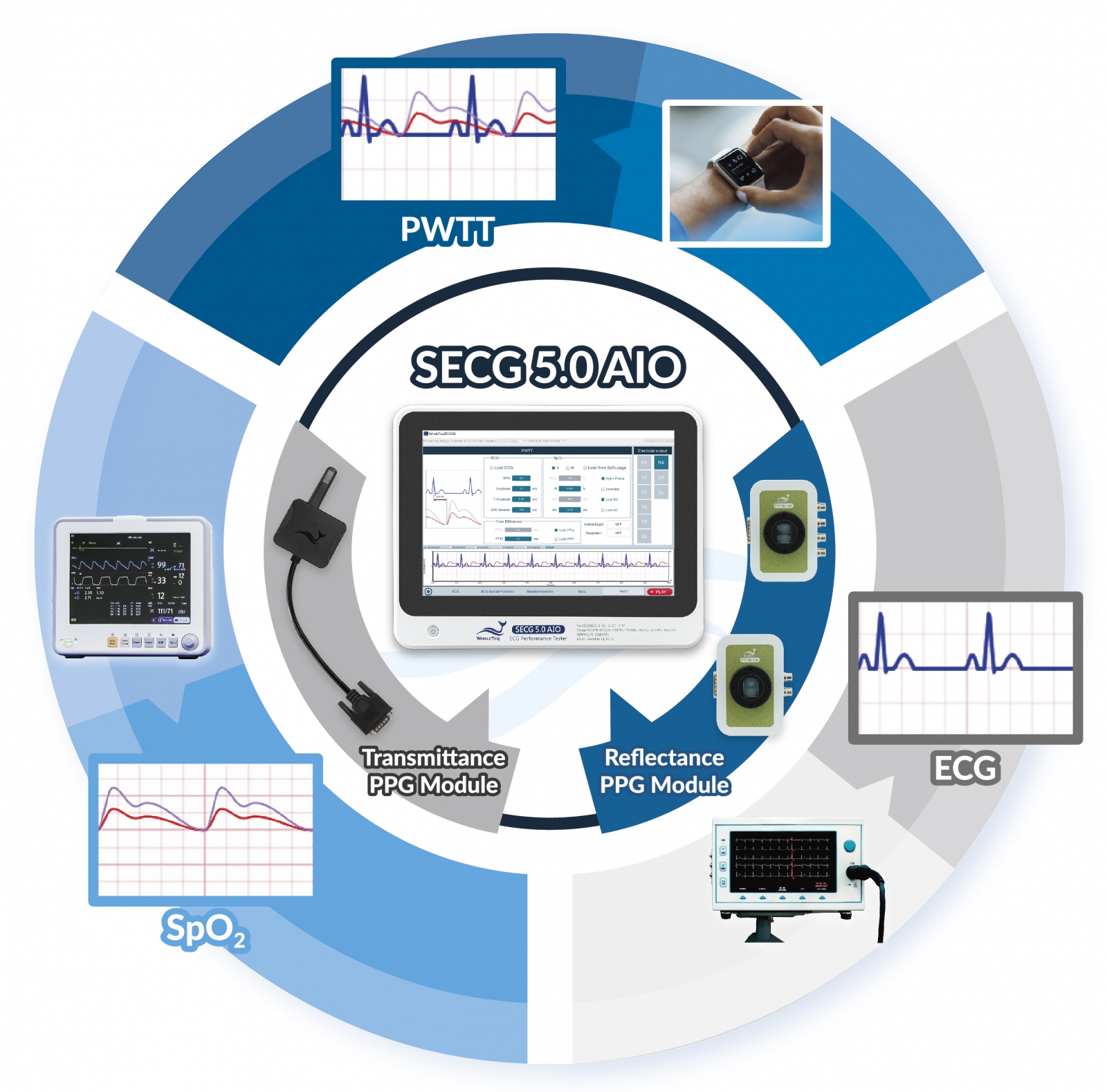

Testing Scenario

Specification

ECG Test Mode

Parameters	Specifications
Main output voltage accuracy	±0.5% for amplitudes of 0.5mVpp or higher
Main output voltage resolution (DAC resolution)	0.63µV
Frequency / pulse repetition rate accuracy	±0.5%
Pulse duration / timing accuracy (excluding pacing)	±0.5ms
Pacing pulse width accuracy	±5μs
Pacing pulse amplitude accuracy, range	±2mV pulse: ±0.3% >2mV pulse: ±10% Range: ±2mV ~ ±700mV
Pacing pulse characteristics	Rise/fall time 5μs Overshoot <1% Settling time <1%
Pacing pulse overshoot (intentional)	Method A according to IEC 60601-2-27
Resistor tolerance	±1%
Capacitor tolerance	±5%
Precision 250:1 divider	±0.1%
Sample rate	10kHz ± 0.05%
DC offset (fixed, noise-free, sourced from the internal supercapacitor)	300mV ± 1%
DC offset (variable, up to 1000mV, may include up to 50μVpp noise)	±1000mV ±1% or ±3mV
Environment	5 ~ 40°C 50 ~ 80% RH altitude < 2000M Overvoltage CAT II

Signal Type

Parameters		Setting Range	Default Values	Minimum Step Size
Sine	Frequency (Hz)	0.05 ~ 5.00Hz	1Hz	0.01
	Frequency (BPM)	3 ~ 30000BPM	60BPM	1
	Amplitude	(-40) ~ 40mV	1mV	0.01
Triangle	Frequency (Hz)	0.05 ~ 5.00Hz	1Hz	0.01
	Frequency (BPM)	3 ~ 30000BPM	60BPM	1
	Amplitude	(-40) ~ 40mV	1mV	0.01
Square	Frequency (Hz)	0.05 ~ 5.00Hz	1Hz	0.01
	Frequency (BPM)	3 ~ 30000BPM	60BPM	1
	Amplitude	(-40) ~ 40mV	1mV	0.01
Rectangle Pulse	Frequency (Hz)	0.05 ~ 5.00Hz	1Hz	0.01
	Frequency (BPM)	3 ~ 30000BPM	60BPM	1
	Amplitude	(-20) ~ 20mV	1mV	0.01
	Pulse width	1 ~ 300ms	100ms	1
Triangle Pulse	Frequency (Hz)	0.05 ~ 5.00Hz	1Hz	0.01
	Frequency (BPM)	3 ~ 30000BPM	60BPM	1
	Amplitude	(-20) ~ 20mV	1mV	0.01
	Pulse width	1 ~ 300ms	100ms	1
Exponential	Frequency (Hz)	0.05 ~ 5.00Hz	1Hz	0.01
	Frequency (BPM)	3 ~ 30000BPM	60BPM	1
	Amplitude	(-20) ~ 20mV	1mV	0.01
ECG Waveform	P Amplitude	0 ~ 2mV	0.2mV	0.01
	P Duration	50 ~ 100ms	100ms	1
	QRS Amplitude	(-20) ~ 20mV	1mV	0.1
	QRS Duration	5 ~ 200ms	100ms	1
	PR Interval	0 ~ 200ms	160ms	1
	QT Interval	100 ~ 900ms	350ms	1
	ST Deviation	(-2) ~ 2mV	0mV	0.01
	T Amplitude	0 ~ 5mV	0.2mV	0.01
	Frequency (Hz)	0.02 ~ 6Hz	1Hz	0.01
	Frequency (BPM)	1 ~ 360BPM	60BPM	1
	Amplitude	(-20) ~ 20mV	1mV	0.1

Signal add-on

Parameters		Setting Range	Default Values	Minimum Step Size
DC offset		(-1000) ~ 1000mV	0mV	1
Pacing	Amplitude	(-700) ~ 700mV	0mV	1
	Duration	0.1 ~ 3ms	2ms	0.1
	Pacing Rate	10 ~ 360BPM / Synchronization	10BPM	1
	Overshooting (Amplitude)	0 ~ 5mV / Amplitude automatic	0mV	0.01
	Overshooting (TimeConstant)	0 ~ 100ms	0ms	1
Baseline Overload Test	Frequency	50 / 60Hz	50Hz	-
620kΩ / 4.7 nF		on / off	Off	-
Sine Wave add-on		on / off	Off	-
Noise	Main Noise	50Hz / 60Hz / White	50Hz	-
Noise	Amplitude	0.01 ~ 5mV	0.1mV	0.01

ECG Special Functions

Parameters		Setting Range	Default Values	Minimum Step Size
Play Raw Data	Sample Rate	Maximum: 20K Hz	-	-
NST Noise	Noise Type	EM - Electrode Motion Artifact BW - Baseline Wander MA - Muscle Noise	EM - -	- - -
NST Noise	Gain	0.1 ~ 10	1	0.1
Auto (Auto Heart Rate)	Heart Rate	30, 60, 120, 180, 200, 250	-	-
	QRS Amplitude	0.5, 1, 2, 5	-	-
	QRS Duration	40, 70, 80, 100, 120	-	-
Auto (Auto Pacing)	Amplitude (mV)	±2, ±100, ±300, ±500, ±700	-	-
	Duration (ms)	0.1, 0.5, 1, 2	-	-
	Synchronization	Synchronized / Asynchronized at 80BPM	-	-
	Pulse Number	Single / Double -150ms / Double -250ms	-	-
	Overshoot (ms)	0, 4, 10, 20, 50, 100	-	-
	QRS/T	on/off	-	-
Frequency Scan (Sine)	Start	0.67 ~ 500Hz	0.67Hz	0.01
	Stop	0.05 ~ 500Hz	150Hz	0.01
	Duration	10 ~ 180s	30s	0.01
Frequency Scan (ECG)	BPM	-	3 ~ 30BPM	-
Frequency Scan (ECG)	Duration	-	30s	-
Lead Off	Lead Off Detection	Lead on / 10MΩ / 20MΩ / Lead off (open)	Lead on	-

SpO₂Test Mode

Parameters		Specifications
Heart Rate	Setting Range	10 ~ 300BPM
	Minimum Step Size	1BPM
	Accuracy	±1BPM
LED DC Level Reference Output	Setting Range¹	100 ~ 3000mV
LED DC Level Reference Output	Minimum Step Size	1mV
LED AC Level Reference Output	Setting Range¹	0.75 ~ 30mV
LED AC Level Reference Output	Minimum Step Size	0.01mV
PI (AC level / DC level)²	Setting Range	0.025% ~ 30% (AC / DC, varies with AC or DC level)
PI (AC level / DC level)²	Accuracy	NA
LED Scan Rate	Rate	10K (Raw data mode)
LED Scan Rate	Accuracy	±5μs
PD Sample Rate	Rate	250K (Single channel)
PD Sample Rate	Accuracy	±5μs
PD Response Time	Rising	1μs Typical³
PD Response Time	Falling	1μs Typical³
SpO₂ %	Setting Range	1% ~ 100%
	Minimum Step Size	1%
	Accuracy	91% ~ 100%: ±1% + specified accuracy of the DUT 75% ~ 90%: ±2% + specified accuracy of the DUT 35% ~ 74%: ±3% + specified accuracy of the DUT Below 34%: with unspecified accuracy
MCX LED Voltage	Amplitude	AC level x 100
MCX LED Voltage	Accuracy	±5%
Note: 1. The SECG 5.0 AIO test system adjusts AC/DC output according to the linearity of LED electro-optical conversion. 2. The PI value may vary according to the different calculation methods of each manufacturer. 3. PD response time varies with the light intensity of the DUT.

PWTT Test Mode

Parameters		Specifications
Time Difference (PTTp, PTTf) Setting Range		0 ~ 5999ms (for the heart rate setting as 10BPM. As the heart rate value increases, the setting range of time difference will decrease accordingly.)
Time Difference (PTTp, PTTf) Minimum Step Size		1ms
Time Difference (PTTp, PTTf) Accuracy		±1ms
ECG Parameters in PWTT Test Mode
Heart Rate	Setting Range	10 ~ 300BPM
Heart Rate	Minimum Step Size	1BPM
ECG Amplitude	Setting Range	0 ~ 20mV
ECG Amplitude	Minimum Step Size	0.1mV
T Wave Amplitude	Setting Range	0 ~ 5mV
T Wave Amplitude	Minimum Step Size	0.01mV
QRS Interval	Setting Range	0 ~ 200ms
QRS Interval	Minimum Step Size	1ms
SpO₂ Parameters in PWTT Test Mode
Heart Rate	Setting Range	10 ~ 300BPM
Heart Rate	Minimum Step Size	1BPM
PI	Setting Range	0.025% ~ 30%
PI	Minimum Step Size	0.001%
LED DC Level Reference Output	Setting Range	100 ~ 3000mV
LED DC Level Reference Output	Minimum Step Size	1mV
LED AC Level Reference Output	Setting Range	0.75 ~ 30mV
LED AC Level Reference Output	Minimum Step Size	0.01mV

Video

Webinar

Basic Introduction

Tutorial

Ordering information

SECG 5.0 AIO Test System

Part No.	Description	Quantity
100-EC00002	The SECG 5.0 AIO standalone ECG simulator with 12 leads (RA, LA, LL, N, V1 - V6) output for ECG performance tests.	1

Optional SpO₂ Module, Heart Rate Module, and Accessories

Part No.	Description	Quantity
100-AE00002	The PPG-1R-525 reflectance green light heart rate module supports PWTT test mode of the SECG 5.0 AIO.	1
100-AE00004	The PPG-2R-880 reflectance SpO₂ module supports PWTT and SpO₂ test modes of the SECG 5.0 AIO.	1
100-AE00005	The PPG-2R-940 reflectance SpO₂ module supports PWTT and SpO₂ test modes of the SECG 5.0 AIO.	1
100-AE00007	The PPG-2TF-660 transmittance SpO₂ module supports PWTT and SpO₂ test modes of the SECG 5.0 AIO. (two MCX (RF) male to BNC cables included)	1
K28-0300301	DB15 cable (male to female) (30cm)	1
K29-0300601	MCX (RF) male to BNC cable (30cm)	1

Optional Software Add-on Pack

Part No.	Description
HA0-SE0G001	Auto setup for IEC 60601-2-25:2011 performance tests.
HA0-SE0G002	Auto setup for IEC 60601-2-27:2011 performance tests.
HA0-SE0G003	Auto setup for IEC 60601-2-47:2012 performance tests.
HA0-SE0G004	Auto setup for China YY0782-2010 performance tests.
HA0-SE0G005	Auto setup for China YY0885-2013 performance tests.
HA0-SE0G006	Auto setup for China YY1079-2008 performance tests.
HA0-SE0G007	Auto setup for China YY1139-2013 performance tests.
HA0-SE0G008	Auto setup for China GB 9706.225-2021 performance tests.
HA0-SE0G009	Auto setup for China GB 9706.227-2021 performance tests.
HA0-SE0G010	Auto setup for China YY 9706.247-2021 performance tests.

Optional Calibration Service and Warranty Extension

Part No.	Description
YY0007	Model No.: C3 Provides (3) years of calibration service coverage. WhaleTeq equipment can be calibrated to original performance on the basis of (1) year interval.
YY0008	Model No.: R3 Extends the limited warranty from (1) year to (3) years.
